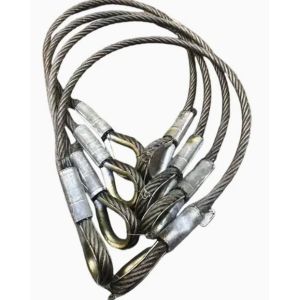

PVC Coated Wire Rope Slings Mechanically Spliced With Thimble Slings---Thimble Thimble

We can supply different Wire Rope with Different Structures:

About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).

EIPS = Extra Improved Plow Steel

FC = Fiber Core

IWRC = Independent Wire Rope Core

Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.

Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.

COATED WIRE ROPE Normally no clouor, but also can supply coated in red, green, black and white.

Shanghai Solar Steel Wire Rope Co. Ltd is a manufacturer of steel wire rope and wire rope slings in Shanghai China, where has developed economy, convenient transportation, dense ports and very close to Jiangsu and Zhejiang provinces. We have strict management system,first-class sales concept, excellent technical sales talents. We are providing steel wire rope, wire Rope Sling, lifting and rigging hardware and relative products, for the steel construction industries, Engineering Heavy Industries, Marine & Engineering, Shipbuilding, Port, Oil & Gas function etc. We also supply OEM service to our business partners all over the world.

We have the advantage of supplying high strength, high toughness, extra large diameter and special structure wire rope & sling for Oil & Gas, Mining, Jack-ups, Shipbuilding, Marine, Offshore projects, Oil Drilling, Steel construction, Fishing, and other use.

The main products are Steel wire ropes, Wire Rope Slings, Anchor Chain, Lifting Chain sling, Polyester rope, Polyester Sling, Lifting and Rigging Hardware and some other customized products. During production, ISO9001:2015 international standards, GB, DIN, BS, JIS, ASTM, RR-W-410, API, ISO otc national standards are strictly implemented.

We insist on service management, quick response, rapid logistics and digital management, and professional product operation mode to keep good custom service.

What We Always Follow：

Safety First, response Fast. We are firmly believe that nothing is more important than safety

What we passion on:

Lifting all, Supply More. We sincerely offer you not just products.

What We are Aim At:

Free Sample - To be your Business Partner

What is Our Vision：

China OEM - Help to win your Market

Our business range also including the marine stores,supply according to IMPA & ISSA book.
With strong network,we are capable of delivering to all major ports and shipyards in China or abroad.
